Your production layout determines how materials move, how long tasks take, and how much your factory costs to run. Choose the right one and work flows smoothly. Choose the wrong one and you spend money fixing inefficiencies that should never have existed.
There are four main production layout types used in manufacturing. Each suits a different combination of product type, production volume, and customisation level. Understanding the differences helps you make a better decision when setting up or redesigning a facility.

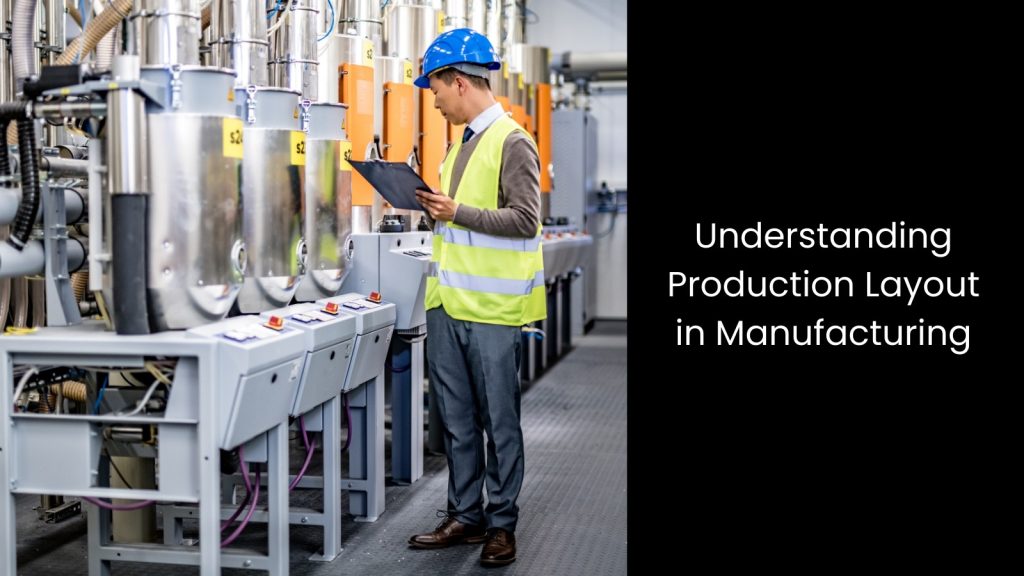

Understanding Production Layout in Manufacturing
- This means how a company arranges machines, tools, and workers on the factory floor to build products in the best way possible.
- When a business sets up its machines in a smart and planned way, it makes work easier, faster, and smoother. This is what people call good production layout design.
- Manufacturers care about this a lot because the right setup can boost productivity, cut down costs, and help teams avoid wasted time moving things around. It also improves how work flows from one task to the next, making sure everything runs without confusion.
- For example, some manufacturing layout types are perfect for mass production, while others work better for customised jobs. Choosing the right one depends on what kind of products a company makes and how much of it they produce. If the layout does not match the type of work, the business ends up spending more money, time, and energy than needed.
- This is why good factory floor planning helps workers stay organised and keeps machines busy instead of sitting idle. It also makes the whole place safer and more productive.
The 4 Main Types of Production Layout Explained
Product Layout (Line Layout)
In a product layout, machines and workstations are arranged in the sequence of production steps. The product moves in a straight path from start to finish. Each station handles one task and passes the work to the next.
This layout works when a factory produces one product in large volumes with little variation. Toyota’s vehicle assembly lines are the most cited example. Beverage bottling plants, food packaging lines, and semiconductor fabrication plants also use this layout.
Real examples: Toyota vehicle assembly, Coca-Cola bottling lines, Intel chip fabrication plants.
Advantages of product layout:
- Low material handling costs because the flow is direct and short.
- High output rate due to specialisation at each station.
- Simple scheduling because the sequence is fixed.
- Low work-in-progress inventory since products move continuously.
Disadvantages of product layout:
- Any machine breakdown stops the entire line.
- No flexibility for product changes without redesigning the layout.
- Workers do repetitive tasks, which can reduce morale over time.
- High initial setup cost for specialised equipment.
Best suited for: high-volume, standardised products with stable demand.
Process Layout (Functional Layout)
In a process layout, machines are grouped by function rather than by product sequence. All drilling machines sit together, all milling machines in another area, all welding stations in another. Products take different paths through the facility depending on what they need.
This is the standard layout for job shops, repair centres, and custom manufacturing environments. Hospitals use a similar logic, grouping radiology in one area, surgery in another, and intensive care separately.
Real examples: Custom machine shops, general hospitals, printing companies, repair and maintenance facilities.
Advantages of process layout:
- High flexibility to produce many different products or handle varied jobs.
- Equipment breakdown in one area does not stop the entire operation.
- Workers develop deeper expertise in their specialised area.
- Easier to adapt when product mix changes.
Disadvantages of process layout:
- Products travel longer distances between departments, increasing handling time and cost.
- Work-in-progress inventory tends to be higher.
- Scheduling becomes complex when multiple jobs compete for the same machines.
- Harder to track progress across a fragmented facility.
Best suited for: low-to-medium volume production with high variety and customisation.
Fixed Position Layout
In a fixed position layout, the product stays in one place. Workers, machines, and materials all move to it. Nothing about the product moves during production.
This is the only practical option when the product is too large, heavy, or fragile to be repositioned during assembly. You cannot wheel a half-built Boeing 747 across a factory floor. You cannot move a ship hull from one station to the next. The work comes to the product instead.
Real examples: Boeing aircraft assembly, shipbuilding yards, large infrastructure construction projects, wind turbine assembly.
Advantages of fixed position layout:
- Saves time and cost from moving large or fragile products.
- Multiple specialist teams can work simultaneously on different parts of the product.
- Production centres are independent of each other, so effective planning and loading can be made and total production cost can be reduced.
- Highly flexible for one-off or custom builds.
Disadvantages of fixed position layout:
- The work area can become crowded with little storage space available, causing material handling problems.
- Requires highly skilled workers who can operate in a complex, multi-team environment.
- Moving equipment to the product and back is time-consuming.
- Coordination between teams working around the same product is difficult.
Best suited for: large, complex, one-off, or low-volume products where moving the item is impractical.
Cellular Layout (Group Technology Layout)
A cellular layout organises the factory into small, self-contained units called cells. Each cell contains all the machines and workers needed to complete a family of similar products from start to finish. The cell operates almost like a mini-factory within the larger facility.
Work cells are small, self-contained production units that include several machines and workers arranged in a compact, sequential order. There are usually five to ten workers in a cell, and they are trained to be able to do any of the steps in the production process.
This layout sits between product and process layouts. It offers more flexibility than a product layout and more efficiency than a process layout. Aerospace component manufacturers, medical device makers, and electronics assembly plants use it widely.
Real examples: Aerospace component manufacturing, medical device assembly, custom electronics production, automotive parts suppliers.
Advantages of cellular layout:
- Improved labour utilisation and employee morale because workers are involved from beginning to end.
- Reduced in-process inventory, reduced set-up time, and reduced material handling costs.
- Problems are easier to spot and fix within a small, focused cell.
- Team members build broader skills by rotating through different tasks.
Disadvantages of cellular layout:
- Reduced shop flexibility and possible reduced machine utilisation if cells are set up for products that are later discontinued.
- Higher initial cost to set up multiple dedicated cells.
- Cell restructuring becomes expensive if product families change significantly.
Best suited for: medium-volume production with moderate variety, especially where products share similar manufacturing steps.
Comparing the 4 Production Layout Types
| Product Layout | Process Layout | Fixed Position | Cellular Layout | |
|---|---|---|---|---|
| Product volume | High | Low to medium | Very low | Medium |
| Product variety | Low | High | Very high (one-off) | Medium |
| Flow path | Fixed, sequential | Variable | Workers move to product | Fixed within each cell |
| Flexibility | Low | High | Very high | Medium |
| Material handling cost | Low | High | High | Low to medium |
| Setup cost | High | Medium | Medium | Medium to high |
| Main risk | Line stoppage from breakdown | Complex scheduling | Coordination of teams | Cell becomes redundant if product mix changes |
| Best example | Car assembly line | General hospital | Shipbuilding | Aerospace components |
The simplest decision rule is volume versus variety. High volume and low variety point toward product layout. Low volume and high variety point toward process layout. Very low volume with complex, large products point toward fixed position layout. Moderate volume with moderate variety is often best suited to a cellular layout.
How Cerexio MES Supports Any Production Layout
Every production layout creates different data challenges. Product layouts need continuous line monitoring to catch stoppages fast. Process layouts need job tracking across fragmented departments. Cellular layouts need per-cell performance visibility. Fixed position layouts need project-style progress tracking across multiple specialist teams.
Cerexio MES handles all of these. It tracks materials, labour, and machine performance in real time regardless of how the factory floor is arranged. Managers get a single dashboard view that works whether the layout is a straight assembly line or a network of independent work cells.
If your layout is changing or you are evaluating options, the visibility Cerexio MES provides also helps you measure which layout is actually performing and where the bottlenecks are. That data makes the next layout decision easier.
Want to see how it works for your specific setup? We are happy to walk through a demonstration.
How to Choose the Right Production Layout
Start with two questions. How many units are you producing? How much does the product vary between orders?
High volume, low variety goes to product layout. A factory making 10,000 identical units per day needs a product layout to keep costs down and throughput high.
Low volume, high variety goes to process layout. A job shop handling 50 different custom orders per month cannot afford the rigidity of a product line.
Very low volume, large and complex products go to fixed position. Shipbuilders and aircraft manufacturers have no other practical option.
Medium volume with moderate variety suits cellular layout. A product-quantity chart helps here. Plot your products by volume and you will find that high-volume products at one end point toward product layouts, low-volume products at the other end point toward process layouts, and the products in the middle zone are strong candidates for cellular layouts.
Also consider your equipment and workforce. Fixed position requires highly skilled multi-function workers. Product layout allows for specialised roles. Cellular layout requires workers trained across multiple tasks. Your existing team capability matters in the final decision.
Most real manufacturing facilities do not use a single pure layout type. Many real facilities use hybrid layouts that combine elements of multiple types.
For example, a firm may use a fixed-position layout for final assembly of a large product while using assembly lines to produce the components and subassemblies that make up the final product. Do not assume the answer has to be one of four clean choices.
Frequently Asked Questions: Production Layout Types
The four main production layout types are product layout (also called line layout), process layout (also called functional layout), fixed position layout, and cellular layout (also called group technology layout). Each suits different combinations of production volume and product variety.
Product layout arranges machines in the sequence of production steps. Products follow a fixed path from start to finish. It suits high-volume, standardised production with low variety. Process layout groups machines by function. Products take different paths depending on what they need.
It suits low-to-medium volume production with high variety and customisation.The key difference is that product layout optimises for flow and speed, while process layout optimises for flexibility.
Boeing aircraft assembly is the most widely cited example. The aircraft stays in one place during the entire manufacturing process. Workers, tools, and components all move to the aircraft rather than the other way around. Shipbuilding yards and large infrastructure construction projects use the same approach.
Aerospace component manufacturers commonly use cellular layouts. Each cell contains the machines and workers needed to produce a family of similar parts from start to finish. Medical device assembly plants and custom electronics manufacturers also use cellular layouts because they combine flexibility with production efficiency for medium-volume, moderate-variety products.
Toyota vehicle assembly lines are the standard example of product layout. Machines and workstations are arranged in the sequence of manufacturing steps. The vehicle moves through each station in a fixed path. Coca-Cola bottling lines and Intel chip fabrication plants also use product layout for the same reason.
Start with volume and variety. High volume with low variety points to product layout. Low volume with high variety points to process layout. Very low volume with large, complex, one-off products points to fixed position. Medium volume with moderate variety points to cellular layout. Most real factories use a combination of layouts rather than a single pure type.
